Paragon™ Walk-Through Metal Detector

WALK-THROUGH METAL DETECTORS
Edwards

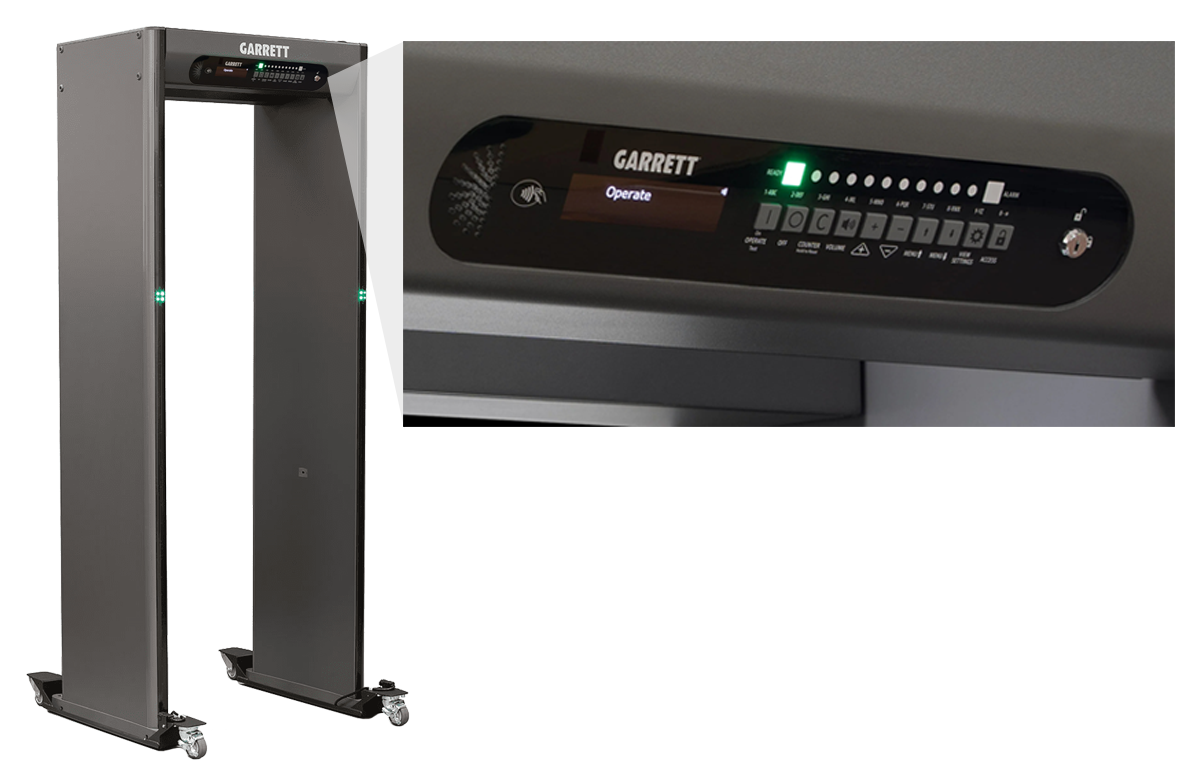

Paragon™ Walk-Through Metal Detector
KEY FEATURES AND SPECIFICATIONS
  • Zone Indications: 66 zones, granular awareness of alarm area top-to-bottom and left/middle/right is unmatched in the world of security metal detection
  • Sensitivity: Up to 200 distinct sensitivity levels
  • Standard Programs: Over 23 application programs included
  • Overhead Control Unit: All electronics—LED, alarm light, bar graph, control touch pads—integrated to eliminate exposed wires and tampering
  • Tamper-Proof Settings: Three levels of access control
  • Self Diagnostic Program: Complete and automatic
  • Zone Sensitivity Boost: 22 independently adjustable boosts
  • Battery: 1.8 amp-hour battery module provides typical 1 hour operating time
  • Optional Battery: 14 amp-hour battery module provides up to 10 hours operating time
  • Passageway Interior Size: Width 30" (0.76 m), Height 81.5" (2.07 m), Depth 23" (0.58 m)
  • Overall Exterior Size: Width 35" (0.90 m), Height 87" (2.21 m), Depth 23" (0.58 m)
  • Weight: 152 lbs. (68.95 kg)
  • Temperature: Operating on AC: −4°F (−20°C) to +131°F (55°C); Battery operation: 14°F (−10°C) to +140°F (60°C)
  • Humidity: Up to 95% non-condensing
  • Power: Fully automatic 100–240 VAC ≤10%, 50 or 60 Hz, 60 W; no rewiring, switching, or adjustments needed
  • Regulatory Information: Meets electrical safety and compatibility requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE
  • Airport Standards: Designed to meet international airport standards such as STAC, AENA, DFT; ECAC certifications pending
  • Weatherproofing: Meets IP65, IEC 529 standards for moisture and foreign matter protection
  • Construction: Scratch- and mar-resistant laminate; detection head and support constructed of heavy-duty aluminum
  • Random Alarm Feature: Adjustable from 0 to 100 percent
  • Option: I/O Relay Module
  • Option: iC Module (Wired/Wireless) – Manage individual or groups of walkthroughs and perform statistical throughput analysis
  • Option: Paragon IR Remote Control
  • Country of Origin: USA
