Multi Zone™ Walk-Through Metal Detector
KEY FEATURES AND SPECIFICATIONS
- Detection Programs: More than 15 pre-programmed detection modes
- Sensitivity: 200 adjustable sensitivity levels
- 20-Zone Detection: Detects and pinpoints the location of concealed metal objects on the human body

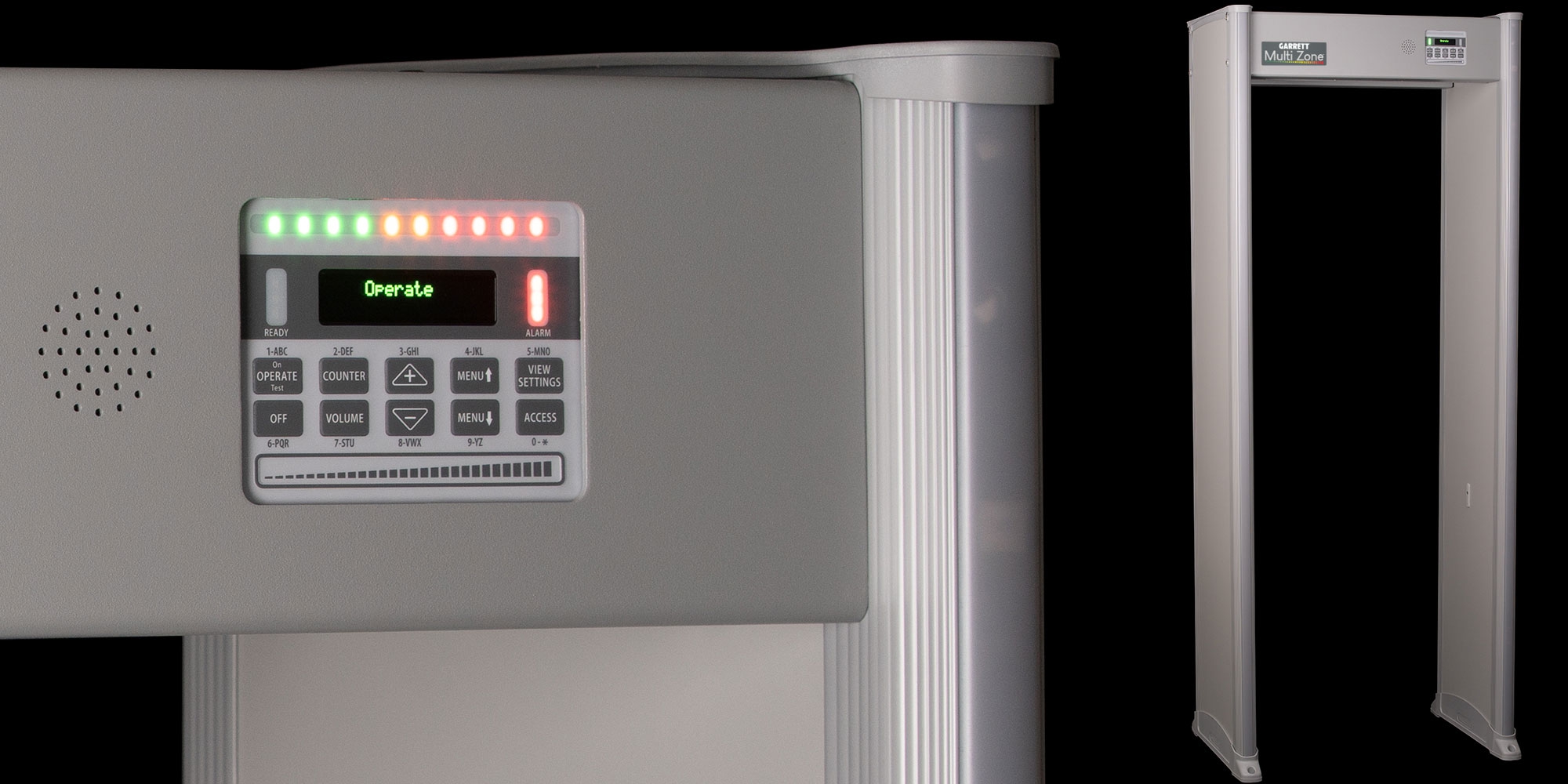

- Control Unit: Includes LCD display, alarm indicators, LED bar for signal strength indication, and keypad
- Tamper Protection: Three security access levels for system entry and configuration changes
- Self-Diagnostic Program: Fully automated and comprehensive self-diagnosis
- Zone Sensitivity Enhancement: Independent sensitivity adjustment for each of the 20 detection zones
- Internal Passage Dimensions: Width 0.76 m × Height 2.03 m × Depth 0.58 m
- External Dimensions: Width 0.90 m × Height 2.21 m × Depth 0.58 m
- Weight: 68.5 kg
- Operating Temperature: −20°C to +60°C
- Operating Humidity: Up to 95% non-condensing
- Power Supply: Automatic 100–240 VAC, 50/60 Hz, 45 W
- Electrical Safety Compliance: CE, FCC, CSA, IEC, ICNIRP, IEEE
- Ingress Protection Compliance: IP55, IP65, IEC 529 — water-resistant and moisture-resistant
- Construction Materials: Scratch-resistant and waterproof laminated panels; upper metal detection unit made of reinforced aluminum
- Outputs – Optional: RS-485 interface module providing NO/NC relay contacts
- Optional Remote Control: Desktop remote control unit displaying detected zones and supporting network connectivity
- Optional Network Connectivity: Individual or grouped gate management with statistical data analysis support
- Random Alarm Feature: Adjustable from 0% to 100%
